Fan with filter, 100 (140) m3/h, 160x160, 230V 50/60Hz IP54 PTF1500 Plastim

Barcode: PTF1500

Regular price: €39,72
Regular price
Sale price: €39,72
Unit price: per

133 in stock

Product variants

Description
Instructions
Payment methods
Warranty

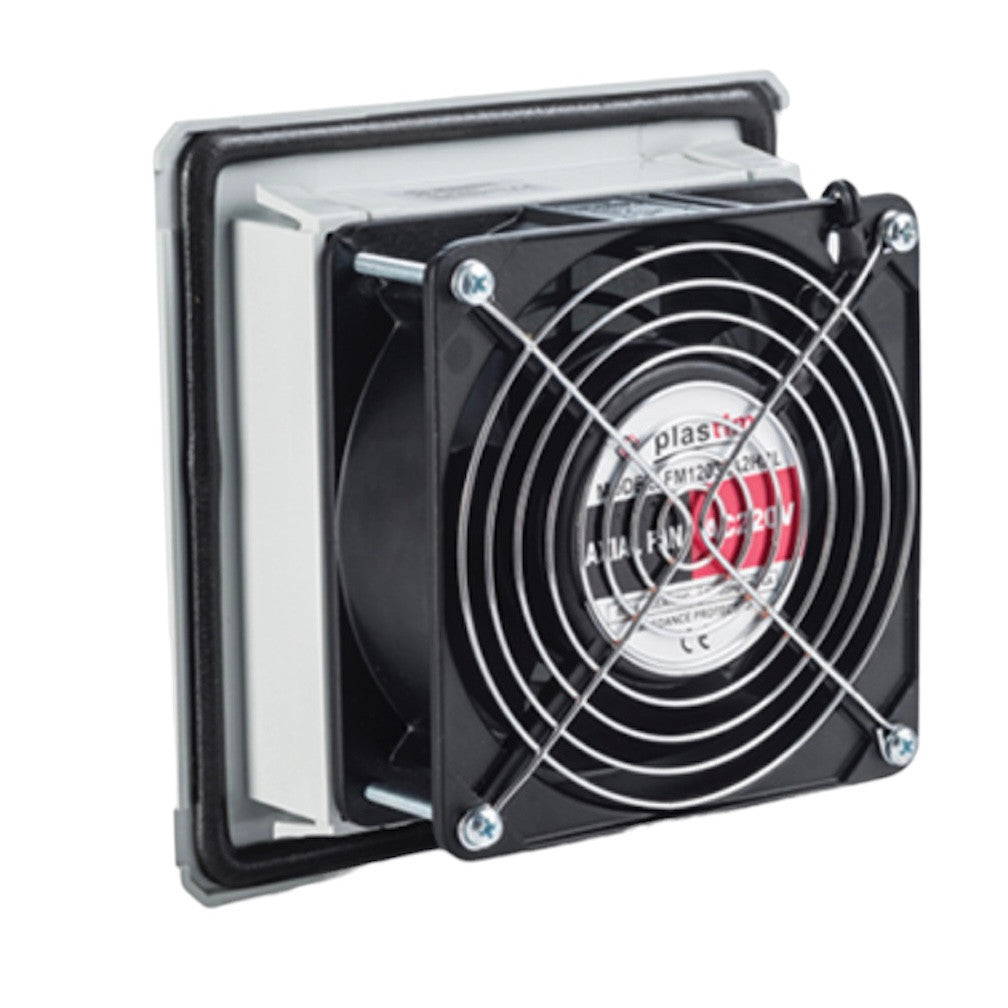

Ventilation grille with fan and filter, size 160x160 mm, for installation in an electrical panel, an automation cabinet, an ATM, or a gaming terminal. PTF1500, manufacturer Plastim (Türkiye)

Used for the intake of outside air in electrical cabinets, ATMs, payment terminals, slot machines, automation cabinets, control panels, gas stations. Generally installed on the side walls of enclosures to maintain the IP.

External dimensions: 160x160x69 mm
Installation dimensions: 125x125mm
Volumetric flow rate: 100 (140) m3/h
Noise level: 42 (46) dB(A)
Bearing: ball bearing
Operating voltage: 220-230VAC, 50/60Hz
Current consumption: 0.14 (0.13) A
Rated power: 26 (23) W
Electrical connection: lead wire
Airflow direction: From outside to inside (modifiable)
Operating temperature: -10/+70 °C
Degree of protection: IP54
Plastic material: flame-retardant ABS UL94 V0
Seal: polyurethane seal
Color: RAL 7035 (RAL 7032 on request)
Weight: 0.68 kg
Installation: quick by clipping

To ensure the automatic renewal of air and the maintenance of temperature with this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller. Both devices can be purchased on our website.
