Bimetallic thermostat NO, setting range 0-60°C, PTVT
- Regular price
- €9,24
- Regular price
-
- Sale price
- €9,24
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
Panel thermostat (temperature relay, temperature sensor, thermal relay, air temperature control relay) mechanical with integrated air temperature sensor for DIN rail installation for connecting fans or signaling when the temperature exceeds the defined level, normally an open contact (NO contact) PTVT, 2p, screw terminals, bimetallic thermostats Plastim.
These thermostats are used in systems that maintain a defined temperature using cooling elements such as fans or air conditioners. These systems are used to prevent overheating of equipment installed in electrical cabinets, ATMs, payment terminals, and other equipment installed outdoors or in uncooled rooms.

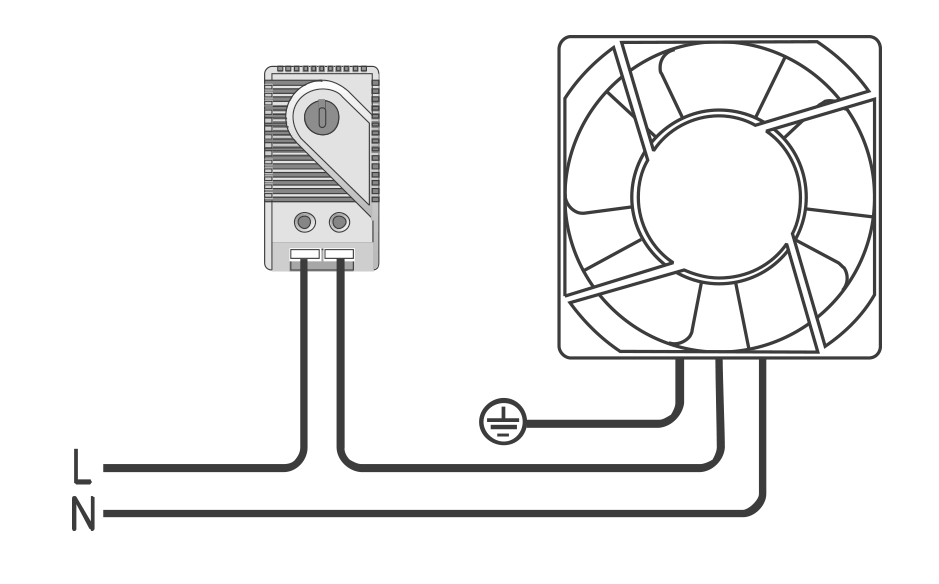

They are used to connect fans, coolers, and air conditioners.
Features |
PTHT |
Contact type |
NO |
Adjustment range |
0-60°C |
Potentiometer color |
blue |
250V AC / 120V AC |
15 (2)A |
Sensor type |
Bimetallic |
Contact type |
Quick action |
Lifespan |
> 100,000 |
Electrical connection |
2-pole terminal, screw terminals |
Plastic material |
Flame-retardant ABS UL94 V0 |
Degree of protection |
IP20 |
Operating temperature |
-25 / +80 °C |
|
Storage temperature |
-45/+80°C |
Installation of the device |
DIN rail 35mm |
Dimensions HxLxP |
61x34x38 mm |
Weight |
45g |
