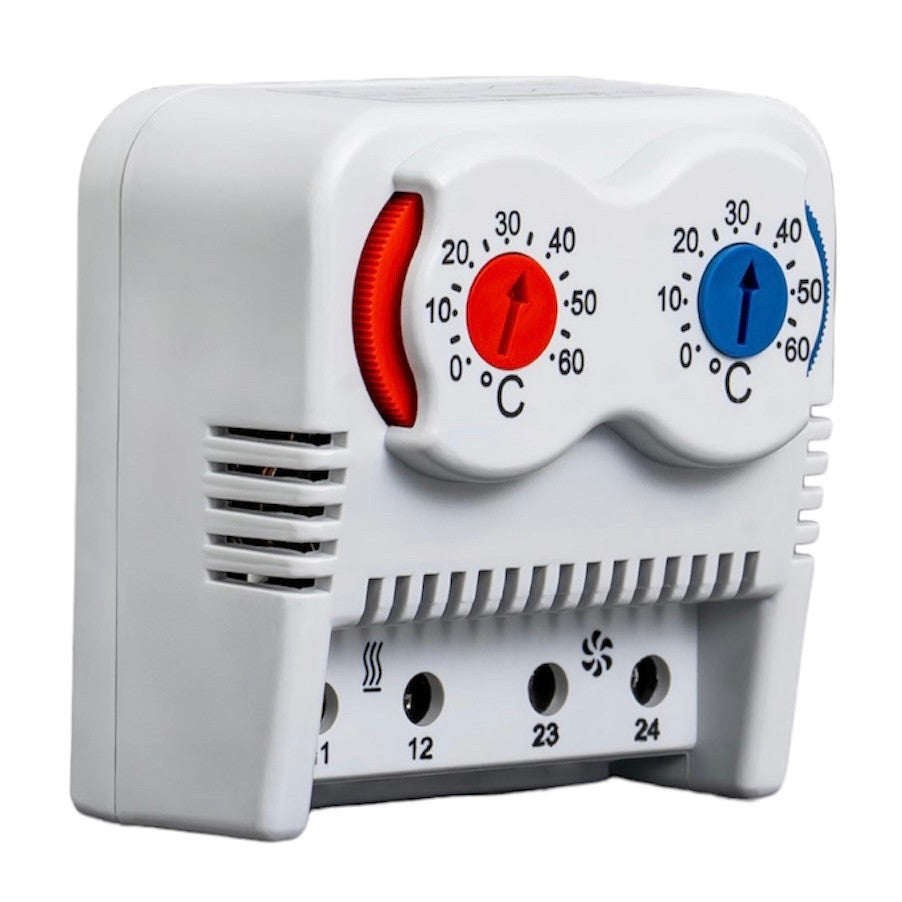

PTHVT Bimetallic double thermostat / double switching NC+NO, range 0-60°C Plastim
- Regular price
- €14,44
- Regular price
-
- Sale price
- €14,44
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
Double bimetallic thermostat PTHVT Double thermostat NC+NO (cooling/heating), switching, 0-60°C, bimetallic
Single thermostat. 220(250) V AC. Bimetallic sensor with type, heating function. Electrical connection with 4 terminals 2.5mm2. Mounting mode on DIN rail 35mm, cross rails, on mounting panel.
Used to connect fans (coolers/air conditioners) and heating elements - heating elements, heating panels, underfloor heating, heating cables, heating fans.
Features |
PTHVT |
Contact type |
NC+NO |
Adjustment range |
0-60 / 0-60 °C |
Potentiometer color |
red / blue |
250V AC / 120V AC |
10 (2) 15 (2)A |
Sensor type |
Bimetallic |
Contact type |
Quick action |
Lifespan |
> 100,000 |
Electrical connection |
4-pole terminal, screw terminals |
Plastic material |
Flame-retardant ABS UL94 V0 |
Degree of protection |
IP20 |
Operating temperature |
-25 / +80 °C |
Storage temperature |
-45/+80°C |
Installation of the device |
DIN rail 35mm |
Dimensions HxLxP |
65x59x42 mm |
Weight |
80 g |
