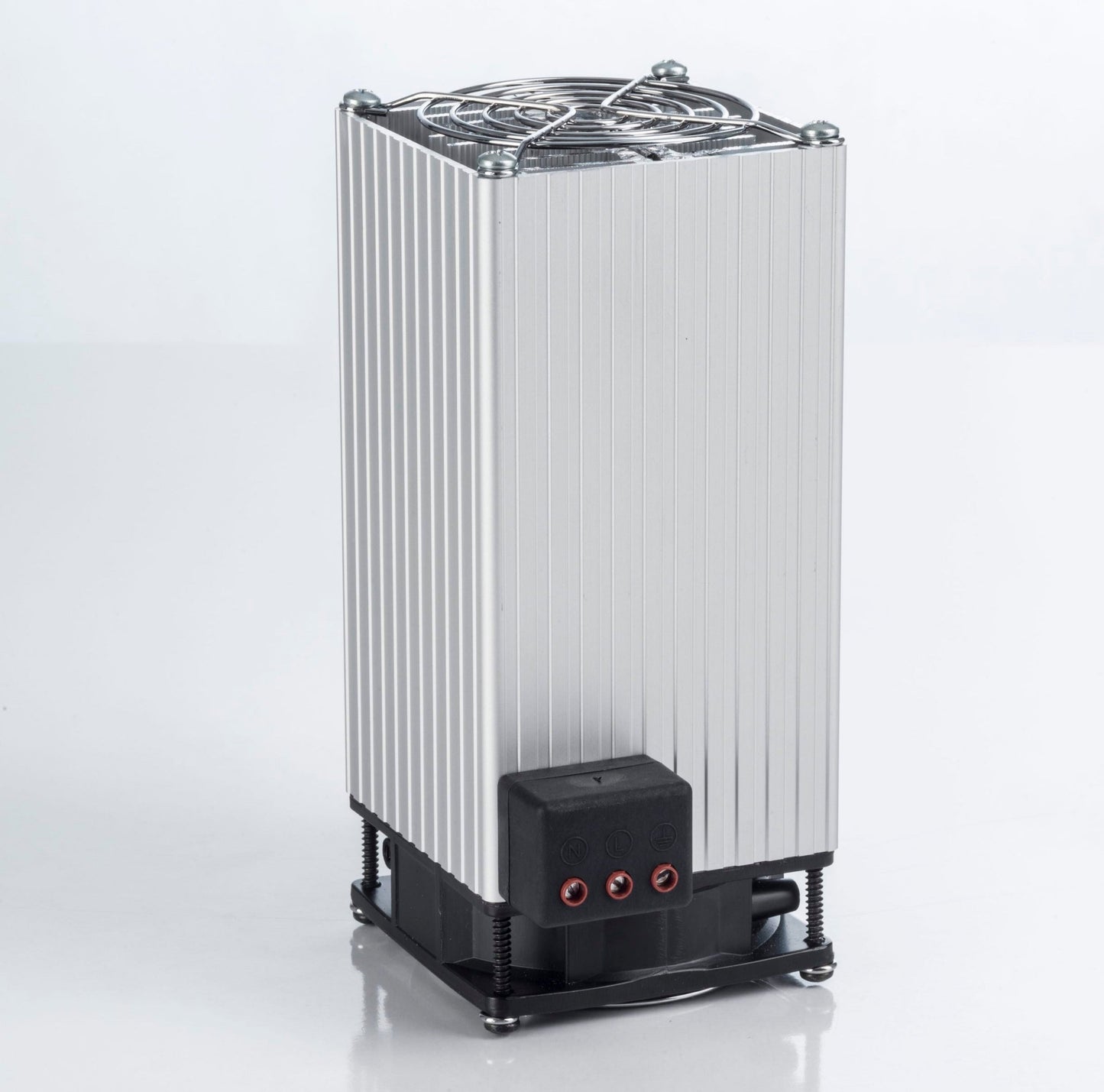

Electric heater (resistance, post-storage) with fan, with anodized aluminum heat sink and overcurrent protection, for DIN rail mounting with power 750 watts, 220/230 volts AC, PFHT750, Plastim - made in Türkiye.
-
Heating power: 750W
-
Operating voltage: 220/230V AC, 50/60Hz
-
Maximum current: 3.6 A
-
Resistance type.
-
Axial fan: 80x80x25mm 35m3/h
-
Overcurrent protection: electronic thermal overload relay
-
Electrical connection: 3-pole NLE terminal
-
IEC Protection Class: Class II
-
Degree of protection: IP20
-
Operating temperature: -25 / +70 °C
-
Storage temperature: -25 / +70 °C
-
Heat sink: anodized aluminum profile
-
Mounting: 35 mm DIN rail
-
Mounting position: Best efficiency in vertical position
-
External dimensions: 232x80x110mm
-
Weight: 1.45 kg
To ensure automatic temperature maintenance with this device, you will need either a simple bimetallic thermostat or a more complex temperature controller. Both devices can be purchased on our website:
