Thermostat for heating control. Adjustable temperature from 0 to 60°C. DIN rail mounting. 1xNC bimetal thermostats, Plastim.
Single thermostat. 220(250) V AC. Bimetallic sensor with type, heating function. Electrical connection with 2 terminals 2.5 mm2. Mounting mode on 35mm DIN rail, cross rails, on mounting panel.
Used to connect heating elements - heating elements, heating panels, heated floors, heating cables, heating fans.
Features |
PTHT |
Contact type |
NC |
Adjustment range |
0-60°C |
Potentiometer color |
Red |
250V AC / 120V AC |
10 (2) A |
Sensor type |
Bimetallic |
Contact type |
Fast action |
Lifetime |
> 100,000 |
Electrical connection |
2-pole terminal, screw terminals |
Plastic material |
ABS UL94 V0 flame retardant |
Degree of protection |
IP20 |
Operating temperature |
-25 / +80 °C |
Storage temperature |
-45 / +80°C |
Installing the device |
35mm DIN rail |

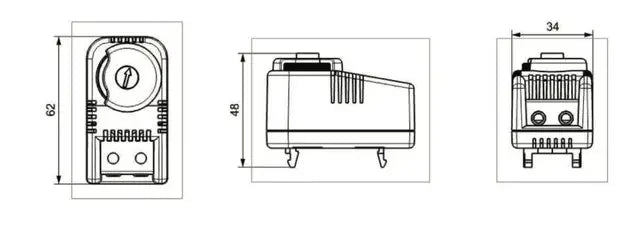

Dimensions HxWxD |
61x34x38 mm |
Weight |
45g |
