Resistive heating plate with fan 500W, PFHT500, PLASTIM
- Regular price
- €132,32
- Regular price
-
- Sale price
- €132,32
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
Electric resistance with fan, with anodized aluminum heat sink and overload protection, for mounting on DIN rail with 250 watts, 220/230 volts AC, PFHT250, Plastim - made in Turkey.
-
Heating power: 500W
-
Operating voltage: 220/230V AC, 50/60Hz
-
Maximum current: 2.4 A
-
Type of resistance.
-
Axial fan: 80x80x25mm 35m3/h
-
Overcurrent protection: electronic thermal overload relay
-
Electrical connection: 3-pole N-L-E terminal
-
IEC protection class: Class II
-
Degree of protection: IP20
-
Operating temperature: -25 / +70 °C
-
Storage temperature: -25 / +70 °C
-
Heat sink: anodized aluminum profile
-
Mounting: DIN rail 35 mm
-
Mounting position: Best efficiency in vertical position
-
External dimensions: 182x80x110mm
-
Weight: 1.2 kg

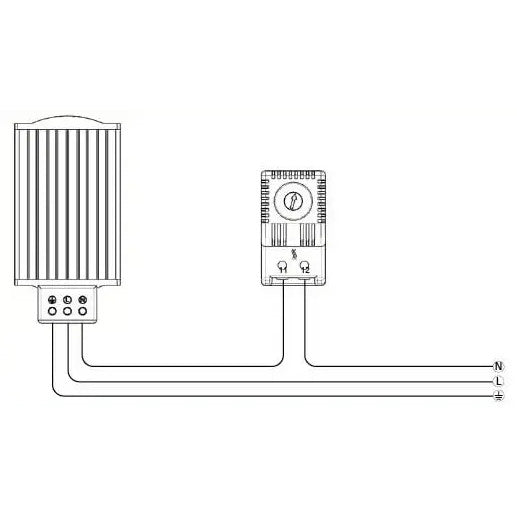

To ensure the automatic maintenance of temperature with this device, you will need either a simple bimetallic thermostat or a more complex temperature controller.
