Electric heater (PTC Body Heater, post-test heater) for distribution board with anodized aluminum heat sink and overcurrent protection, for DIN rail installation, 50 watts, 110-220 volts AC or DC, PHT050, Plastim - made in Turkey.
- Heating power: 50W
- Operating voltage: 100-250V AC/DC
- Maximum current: 2A
- Self-regulating PTC resistor
- Overcurrent protection: electronic thermal overload relay
- Electrical connection: 3-pole NLE terminal
- IEC Protection Class: Class II
- Degree of protection: IP20
- Operating temperature: -45 / +70 °C
Storage temperature: -45 / +70 °C
Heat sink: anodized aluminum profile
Mounting: 35 mm DIN rail
Mounting position: Best efficiency in vertical position
External dimensions: 138x70x59mm
Weight: 0.44 kg
Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals, and other electronic devices. Previously, incandescent lamps were used for this purpose, but it is clear that this method does not meet today's stringent requirements for electrical and electronic equipment. Today, almost all manufacturers adopt PTC resistors, which not only provide heating but also guarantee safety and durability of operation.
All heaters are equipped with electronic protection against surface overheating, which is an additional guarantee of operational safety.
Due to the high demands placed on cabinet heaters, Plastim has paid the utmost attention to the selection of component suppliers. For example, the supplier of PTC heaters is the same as Schneider Electric, and the terminal block for the electrical connection of all components is manufactured by the Italian company KORNER to special order. The plastic from which this block is made has a very important property: when heated, not only does it retain its shape and does not deform, but it also does not emit any odor and therefore does not emit harmful carcinogenic substances into the atmosphere. Admit that this approach to supplier selection favorably distinguishes high-quality Plastim heaters from cheap Chinese counterparts.

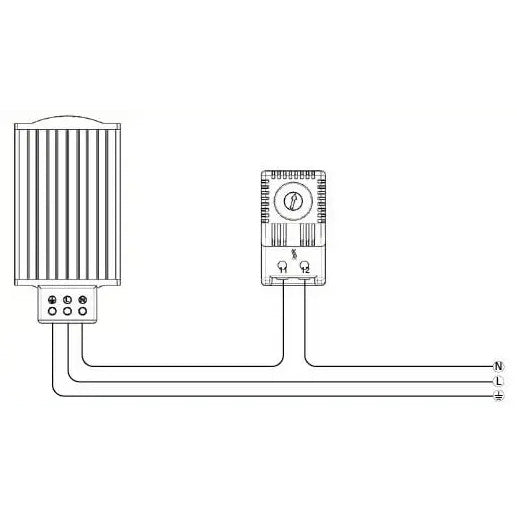

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more complex temperature regulator.
