Three-Phase Network Parameter Analyzer

Three-phase network analyzer / Network analyzer / Network parameter meter - Multifunctional digital display, current, voltage, frequency, and total power indicator, with two relay outputs and digital input, RS485 ModBus RTU - TPM-01ESH manufacturer TENSE (Turkey)

The multifunctional power network analyzer is designed to accurately measure the parameters of three-phase networks.

Power analyzers are designed to measure and monitor electrical values. With the communication function, energy measurements can be controlled and reported independently.

Main advantages:

• RS485 Modbus RTU (1200-38400bps)
• Three-phase voltage transformer and three-phase current transformer.

• Displays voltage and current harmonics up to the 31st harmonic.

• Display of active power per phase (P)

• Displays reactive power per phase (Q, inductive and capacitive)

• Displays apparent powers per phase (S)

• Displays Cosφ values and power factor of each phase

• Displays voltage (V) and current (I) phase-neutral, phase-phase values of each phase, measuring frequency.

• Displays total active energy import and export values (ΣkWh)

• Display of total reactive inductive and capacitive energy values (ΣkVArh)

• Display of minimum and maximum values, maximum demand

• 2 relay outputs, 1 digital input

• Event logs (high/low voltage/current, voltage/current imbalance, THD-I)

• The menu is protected by a password.

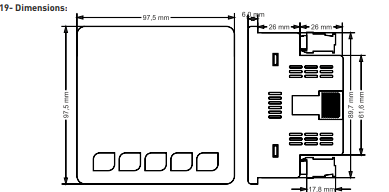

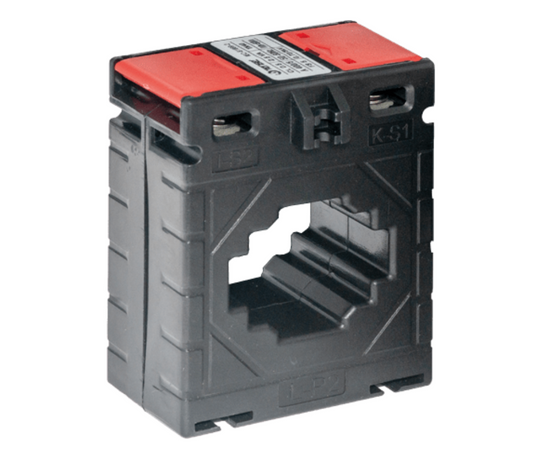

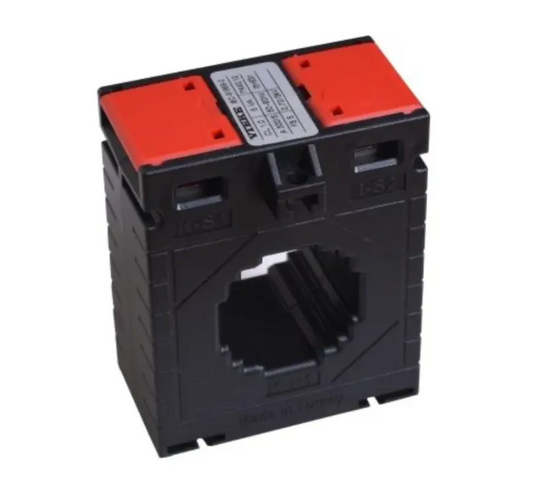

This network analyzer is generally used with current measurement transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. You can purchase such transformers in our e-shop. If you intend to connect the analyzer to ModBus, we will send you a register table with ModBus addresses upon request.
