Temperature regulator / 2-point thermostat for rail mounting with external probe. ON-OFF ON-OFF control mode, measurement range -30ºC ...+150ºC (made in Turkey, TENSE) DT-321DIN
Temperature regulator with external probe
The DT-321DIN temperature regulator is characterized by its ease of individual use and is used to control heating or cooling devices. The DT-321DIN can also serve as a reading device.
Control and monitoring of thermal processes in heating, air conditioning, and ventilation systems, building automation, industrial installations.
Sensor type: NTC
Relay outputs OUT and ALARM (NO+NC) 250VAC, 2A
Heating and cooling function optional
- Hysteresis
Adjustable ON/OFF delays for the OUT output in case of sensor failure
- Protection against compression through adjustable downtime
Upper and lower limits for SET and ALARM settings
Separate adjustable hysteresis for SET and ALARM settings
Power-on delay for the output in cooling mode
EEPROM memory for storing settings
Password protection
High precision
Delivery contents:
1x temperature regulator DT-321DIN
1x NTC (sensor)
1x user manual (English)
This simple temperature regulator can be used with the three types of sensors presented on our site:
- Reference to type 1: -30°C to 105°C - SKU: NTC-105 (included)
- reference to type 2: -30°C to 150°C - SKU: NTC-150
- referenceto type 3: -30°C to 150°C (with nut and thread) - SKU: NTC-S-150
Specifications:
Power supply voltage: 100 to 240 VAC, 50/60 Hz
Power consumption: < 6 VA
Sensor type: NTC
Temperature measurement range: - 30 °C to + 150 °C
Resolution: +/- 1 °C
Measurement accuracy: +/- 3% (°C), over the entire measurement range
OUT output: Relay (NO + NC), 250V AC, 2A
ALARM output: Relay (NO + NC), 250V AC, 2A
Operating temperature: 0°C to 50°C
Heating/cooling: Ht (heating), Cl (cooling); selectable

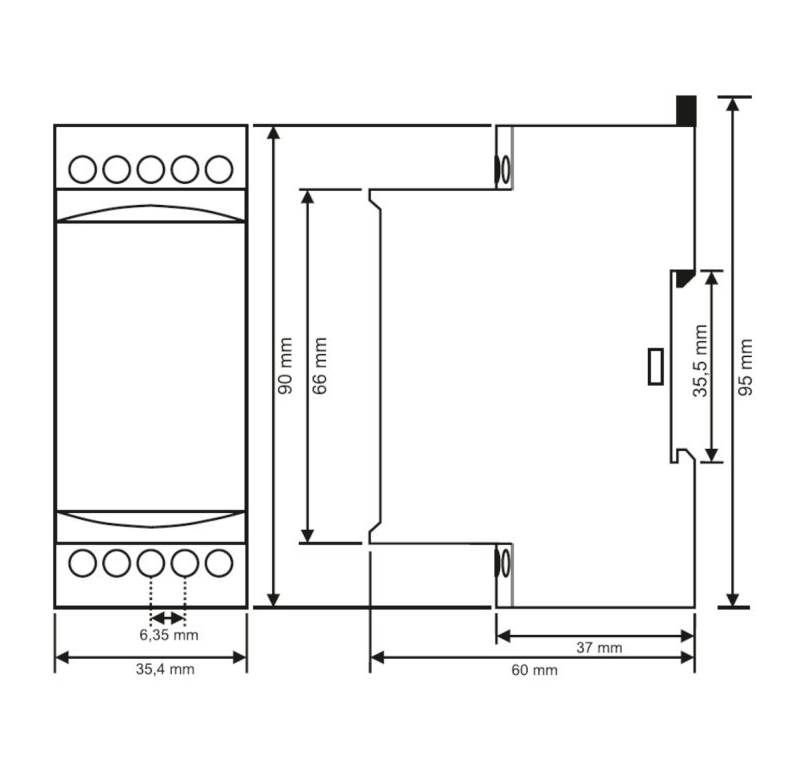

Cutout for front panel: 66 x 36 mm
Display: 3 digits - 7 segments
Product type: temperature measuring device
Protection class: IP00
Brand: Tense Tense
Country and region of manufacture: Türkiye
Power supply voltage: 100V - 240V ~
Connection type: screw terminals
Mounting: DIN rail
Temperature measurement range: -30...+150°C
Temperature relay (NO + NC), 250VAC, 2A, resistive load
Sensor type: NTC sensor
Shipping weight: 0.12 kg
Item weight: 0.10 kg
Dimensions (length × width × height): 8.50 × 7.80 × 36.00 cm
