Bi-metal cooling thermostat NO, range 0-60°C - thermostats
- Regular price
- €9,76
- Regular price
-
- Sale price
- €9,76
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
Bimetallic cooling thermostat / NO temperature switch, switching, 0-60°C, bimetallic from OPAŞ

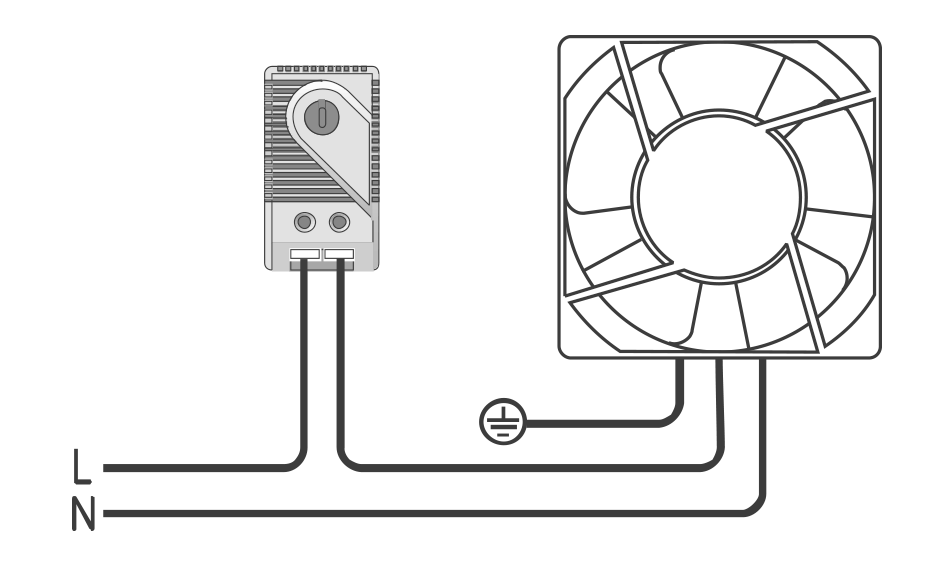

Mechanical cabinet thermostat (temperature relay, temperature sensor, thermal relay, air temperature control relay) with integrated air temperature sensor for DIN rail mounting for connecting fans or signaling when the temperature exceeds the defined level, normally an open contact (NO contact) PTOT100, 2p, screw terminal, bimetallic thermostats from OPAŞ.
These thermostats are used in systems that maintain a defined temperature using cooling elements such as fans or air conditioners. These systems are used to prevent overheating of equipment installed in electrical cabinets, ATMs, payment terminals, and other equipment installed outdoors or in uncooled rooms.
They are used to connect fans, coolers, and air conditioners.
|
Features |
PTOT100 |
|
Contact type |
NO |
|
Adjustment range |
0-60 °C |
|
Potentiometer color |
blue |
|
250V AC / 120V AC |
15 (2) A |
|
Sensor type |
Bimetallic |
|
Contact type |
Quick action |
|
Lifespan |
> 100,000 |
|
Electrical connection |
2-pole terminal, screw terminals |
|
Plastic material |
ABS UL94 V0 flame-retardant |
|
Degree of protection |
IP20 |
|
Operating temperature |
-25 / +80 °C |
|
Storage temperature
|
-45 / +80 °C |
|
Device installation |
DIN Rail 35mm
|
|
Dimensions HxLxP |
61x34x38 mm |
|
Weight |
43g |
