Digital potentiometers are control devices that produce an analog output between 4 and 20 mA.
- Based on a microprocessor
- Analog output: 4-20mA
- Menu entry and control of the analog output via the front keys
- Control of the analog output via numeric inputs
- Adjustable upper and lower level of the scale
- Adjustable upper and lower limit for SET
- Separate selection of functions for front keys and numeric inputs to control the analog output
- Password protection
- SECU setting to enable/disable the input in the SET adjustment menu
- High accuracy
- EEPROM memory to store settings
- Easy connection thanks to plug-in connectors
TECHNICAL SPECIFICATIONS
- Dimensions: 35x77mm
- Panel cutout: 29x71mm
- Display: 4 digits, 7 segments
- Analog output: 0-10V or 4-20mA (to be specified when ordering)
- Load impedance 0-10V: >5K
- 4-20mA max. Voltage: <10V
- Resolution: 2mV (0-10V), 4μA (4-20mA)
- Accuracy: ±%1 ;(overrange)

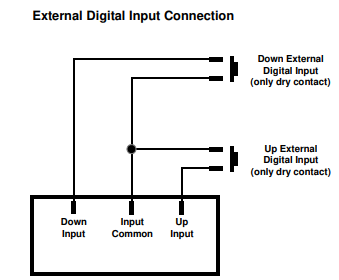

- User control: Via the up/down buttons on the front panel or the up/down digital inputs
- Digital inputs: dry contact only
- Supply voltage: 100..240VAC, 50-60Hz or 24VDC/AC.
- Power consumption: < 6VA
- Humidity: 80% up to 30oC, then linear decrease to 50% at 50oC (without condensation)
- Altitude: < 2000 m
- Protection class: IP20
- Operating temperature: 0 ... 50 oC
- Storage temperature: -10oC ... 60oC (without frosting)
- Weight: < 0.5 kg
