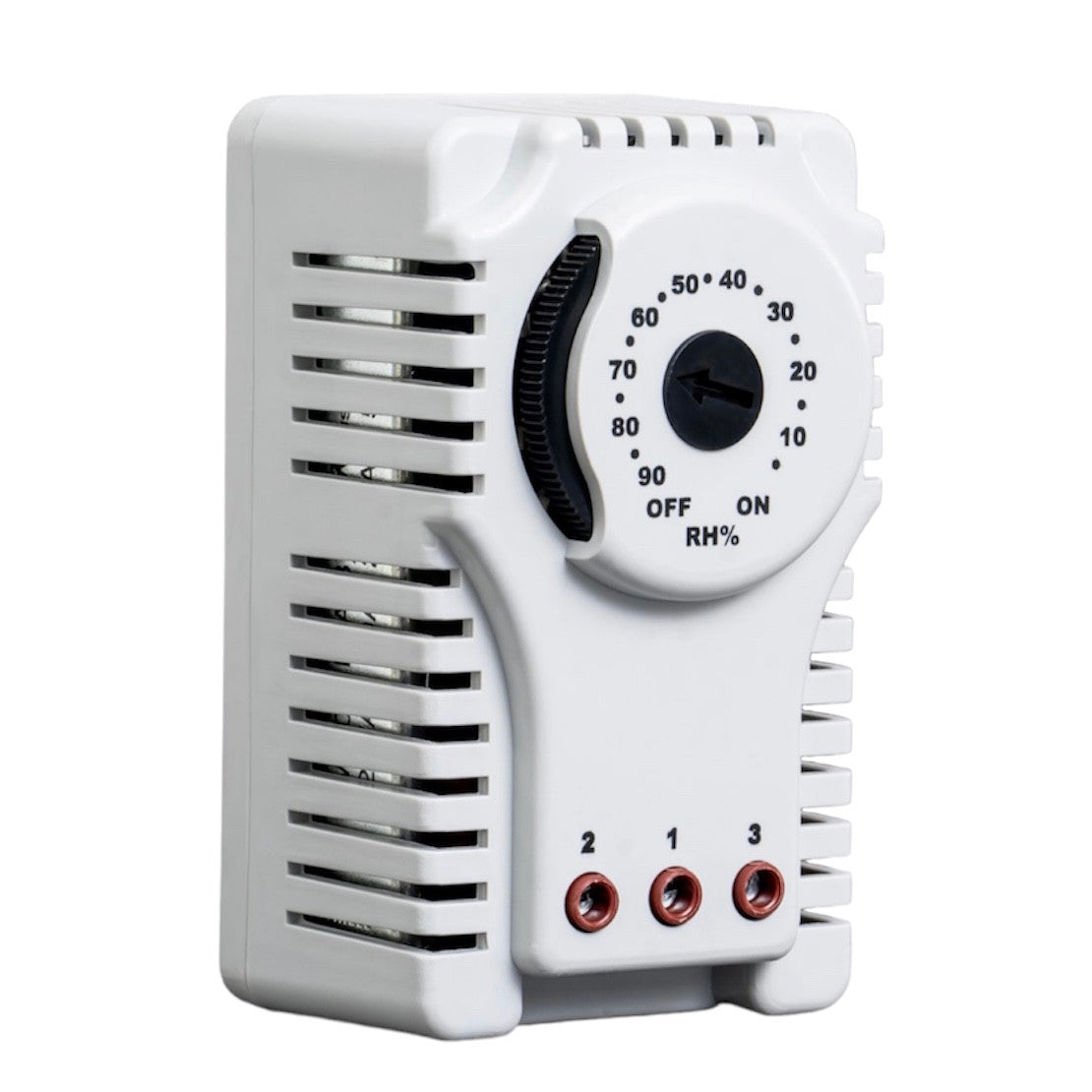

PLASTIM PHG02 hygrostat 110-250VAC (10A-5A current load), 10 - 90%HR, screw terminals IP20
This hygrostat (mechanical relay for controlling humidity level or hygrometer or hygrostat) can be used for both processes - for reducing humidity and for increasing humidity. To this end, the device is equipped with a switching contact that allows this hygrostat to be used for any humidity control task.
This humidity level control relay is designed to be installed in electrical or automation panels, ATMs, payment terminals, slot machines, or other enclosures to monitor humidity levels and activate corresponding heating or drying devices.
Manufacturer code |
Unit |
PHG02 |
Power supply voltage |
V AC |
110-250 |
Adjustment range |
% RH |
10-90 |
Color potentiometer |
- |
Black |
Current |
A |
(10-5) |
Hysteresis |
- |
%5 - %10 |
Sensor type |
- |
Polyamide tape |
Electrical connection |
- |
3-pole terminal |
Wire size |
- |
0.75 mm² - 4.0 mm². |
Operating temperature |
°C |
+10/+60 |
Storage temperature |
°C |
+10/+60 |
Degree of protection |
- |
IP20 |
Body color |
- |
RAL7035 |
Installation |
- |
DIN Rail 35mm |
Device dimensions |
mm |
94x54x56 |
Weight |
