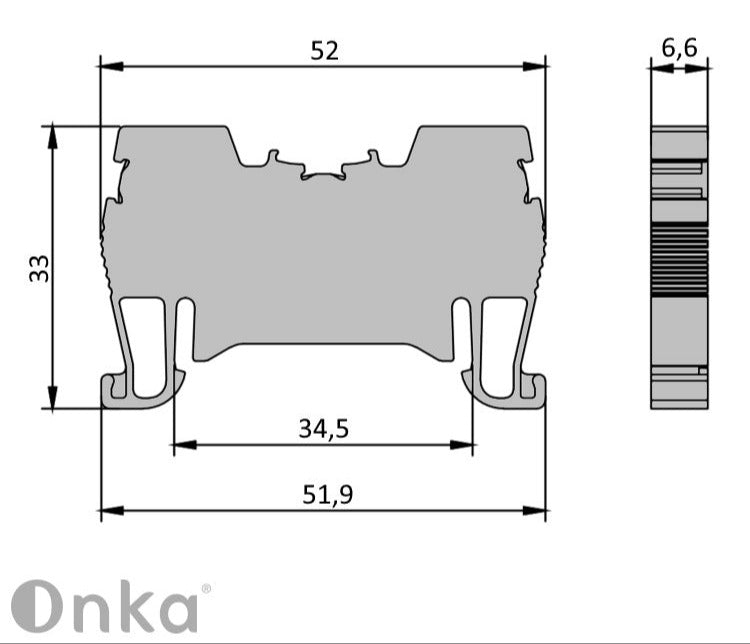

ONKA 4mm2 spring rail connector terminal strip DIN rail terminal strip 2-wire grey, 1020024
- Regular price
- €0,72
- Regular price
-
- Sale price
- €0,72
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
ONKA's compact installation rail couplers offer great possibilities for connecting any wire of different sections. The transparent housing allows for easy verification of the correct arrangement of wires. ONKA's original quick connectors facilitate installation and ensure 100% connection reliability.
Technical parameters
Connected wire section up to: 4mm2
Color: gray
Main housing insulating material: polyamide (PA6.6)
Contact/jumper material: stainless steel/copper
Connection position: top / top
Stripping length of cable: 9mm
Type of electrical connection: spring clamp / retractable contact
Rated voltage: 750V
Rated current: 32A
Operating temperature from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN rail mounting 35 mm
Standard: EN-60947-7-1
