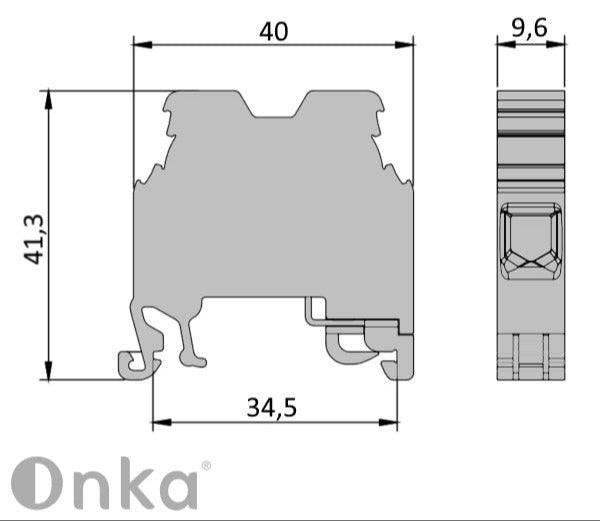

ONKA 10mm2 PE Connector for screw terminal rail for DIN rail 2-wire gray, 1010221
Online payment by card - after completing your order, you will be redirected to the payment gateway, payment confirmation will be sent to you by email
Cash on delivery - payment according to the payment regulations will be made to the delivery person of the transport company
By bank transfer - you will receive a pro forma invoice by email no later than the next working day, on which you will find the account number to enter when paying.
On invoice - this payment option is reserved for partners who have signed a framework contract with our company.
If you wish to use the last 2 methods, please call our manager and he will give you instructions on how to obtain an invoice with or without VAT.
The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.
In the event of a complaint, no fees are charged for the return of goods.
The compact installation rail connectors from ONKA offer great possibilities for connecting any wire of different sections. The transparent housing allows for easy verification of the correct arrangement of wires. ONKA's original quick connectors facilitate installation and ensure 100% connection reliability.
Technical parameters
Connected wire section up to: 10mm2
Color: Green-yellow (camouflage)
Main housing insulating material: polyamide (PA6.6)
Contact/bridge material: steel/copper CK45
Tightening torque: 0.8 Nm
Connection position: lateral
Stripping length of cable: 12 mm
Type of electrical connection: screw collar
Rated voltage: 750V
Operating temperature range: -40°C... 140°C
Mounting method: DIN mounting rail 35 mm
Standard: EN-60947-7-1
