Three-phase multimeter - Multifunction digital measuring panel for three-phase, current, voltage, frequency, and total power, energy kW*h and ModBus RTU manufacturer TENSE (Turkey), measuring panel.
Main advantages:
- RS485 Modbus RTU (1200-38400bps)
- 71.5 x 61.5 custom glass LCD

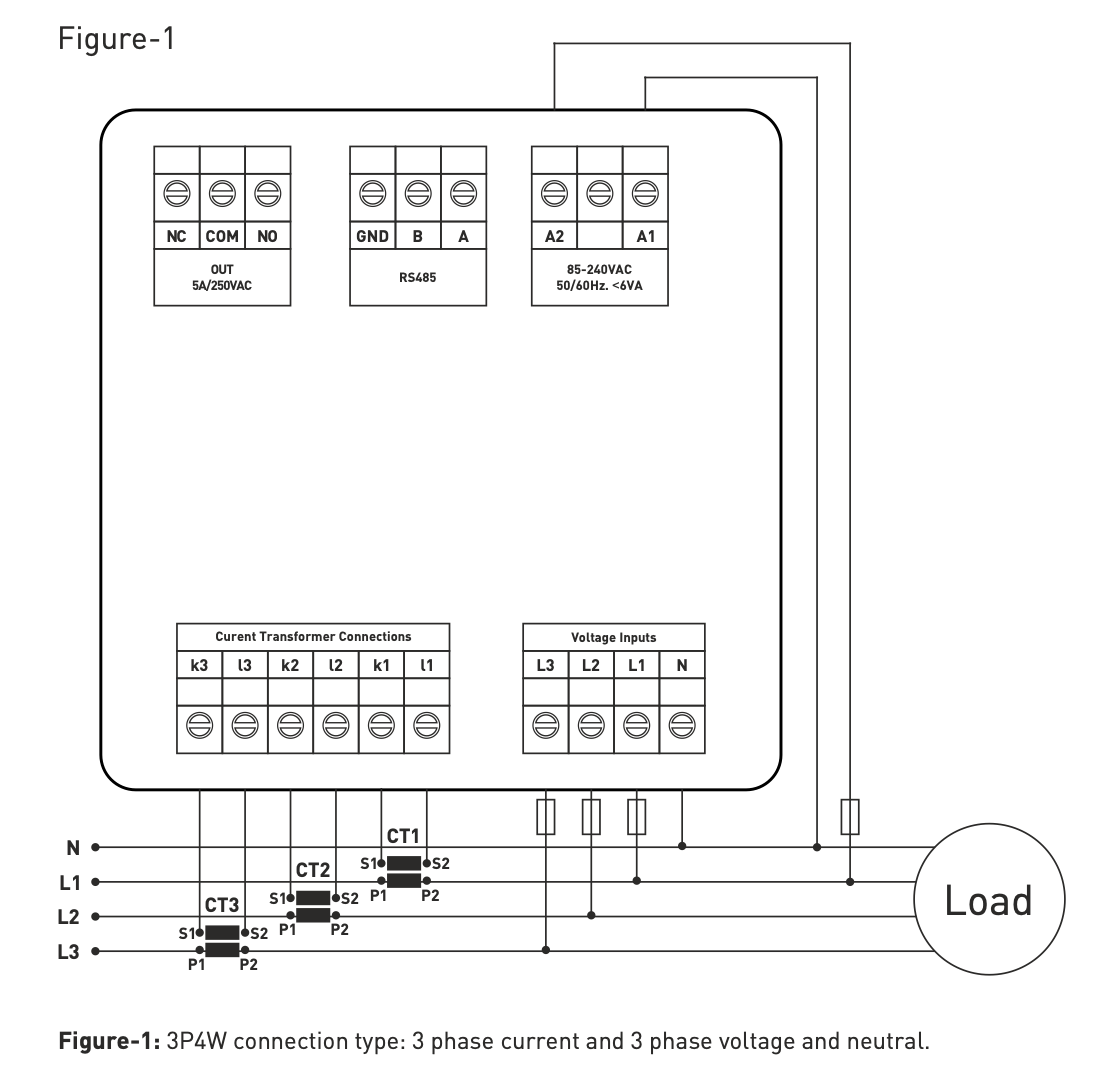

- Three-phase voltage transformer and three-phase current transformer.
- Displays V1, V2, V3, V12, V23, V31, I1, I2, I3, S1, S2, S3, F1, F2, F3.
- Displays minimum, maximum, and average values of V1, V2, V3, V12, V23, V31, F1, F2, F3.
- Displays minimum, maximum, average values and set points I1,I2,I3,S1,S2,S3 High/Low voltage, current, frequency (adjustable) Phase-neutral or phase-phase protection (adjustable)
- Energy meter / Power meter
- Protection of voltage, current, and frequency
- Display of phase sequence
- You can remove requirements.
- The menu is protected by a password.
This multimeter is generally used with current measurement transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. You can purchase such transformers in our e-shop,
