MRK Bloc de jonction 25 mm² pour montage sur rail (avec couvercle)
- Regular price
- €12,40
- Regular price
-
- Sale price
- €12,40
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

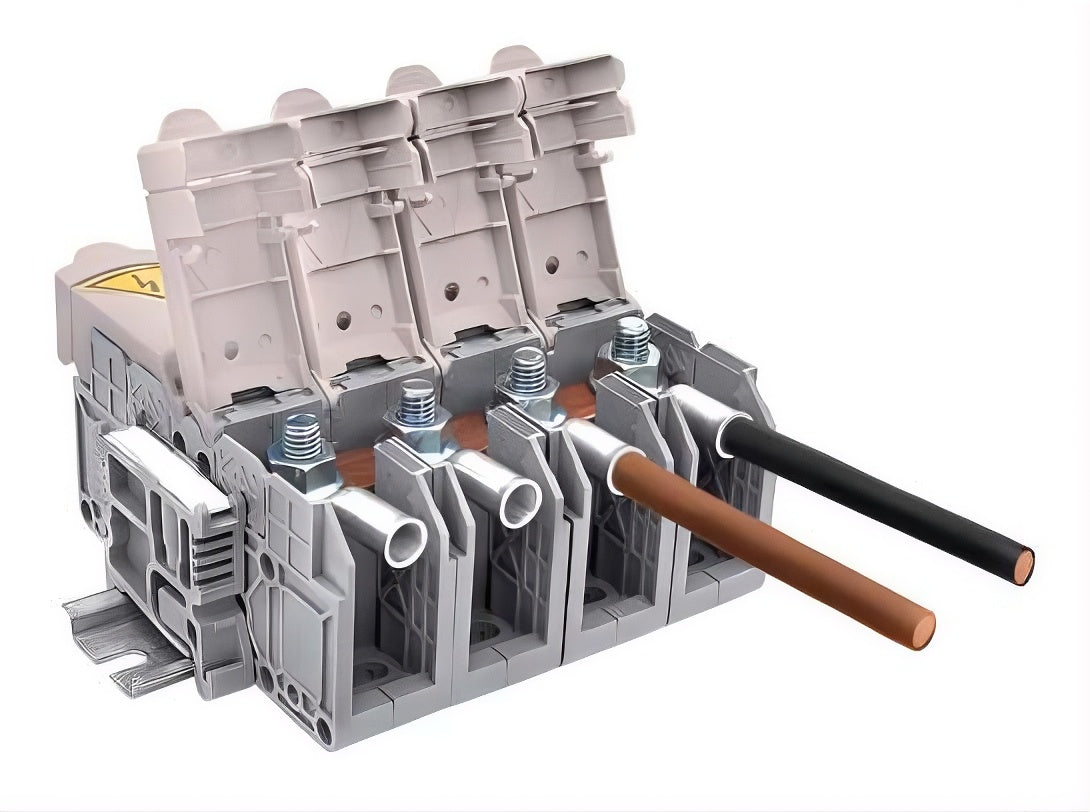

Bloc de jonction en ligne avec couvercle de protection pour montage sur rail DIN, ONKA
Le robuste bornier industriel de la série MRK, d'une section nominale de 25 mm², est conçu pour une connexion sûre et fiable des conducteurs d'alimentation dans les armoires de distribution. Le bornier est équipé d'un mécanisme à vis métrique M6, qui fournit une pression stable et élevée pour minimiser la résistance transitoire à une charge de courant maximale de 101 A. La conception comprend un couvercle isolant intégré pour améliorer la sécurité de l'opérateur et le protéger contre tout contact accidentel avec des pièces sous tension. La base de la pince permet un montage rapide et sûr sur un rail de support standard DIN 35 mm.
Paramètres techniques
Type de produit.
Section nominale du conducteur : 25 mm².
Tension nominale : 1000 V
Courant nominal : 101 A
Taille du boulon : M6 (connexion à vis)
Méthode de montage : rail de montage DIN 35 mm

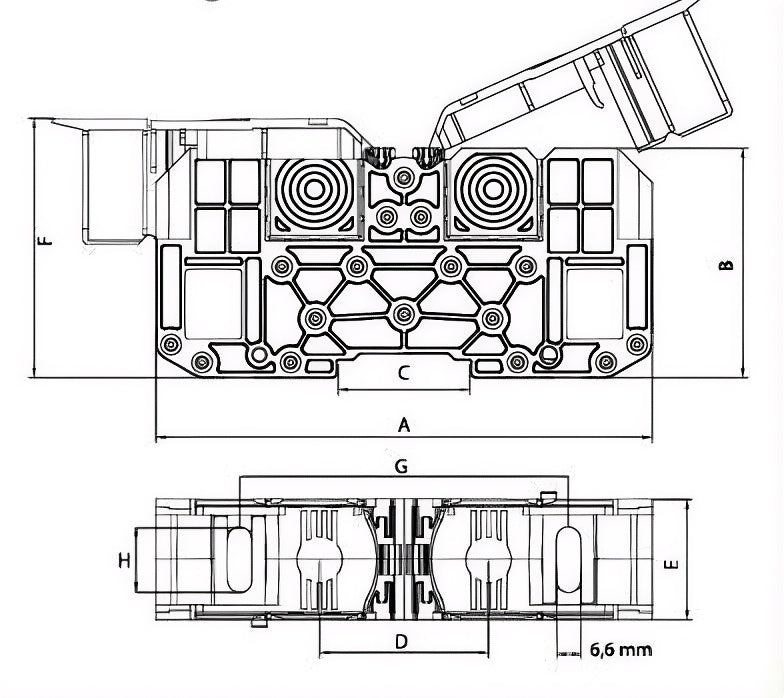

Dimensions de l'appareil
Dimension A : 107,0 mm
Dimension B : 50,8 mm
Dimension C : 35.0 mm
Dimension D : 40.0 mm
Dimension E : 27.0 mm
Dimension F : 58.5 mm
Dimension G : 76.5 mm
Dimension H : 16.3 mm
