Climatiseur pour armoire électrique / refroidisseur 1600 watts (Design Series) pour armoire électrique et armoire d'automatisation, montage latéral ou mural.
Le climatiseur PAD1600.01 (PLASTIM) pour armoire électrique est équipé d'un compresseur rotatif de type ouvert HIGHLY, d'un thermostat Dixell, d'un évaporateur de condensats et d'un interrupteur de fin de course pour contrôler l'ouverture de la porte de l'armoire électrique.
Tout le matériel nécessaire à l'installation du climatiseur dans l'armoire est inclus - joints, tuyau d'évacuation, vis de montage, connecteur d'alimentation.
DÉTAILS TECHNIQUES |
PAD1600.01 |
Capacité de refroidissement L35 / L35 |
1600W / 5500BTU |
Tension de fonctionnement |
230VAC |
Fréquence |
50/60 Hz |
Courant de démarrage |
8A |
Courant de fonctionnement |
3.2A |
Fusible |
10A |
Consommation électrique |
725W |
Plage de fonctionnement |
0-55 °C |
Réglage d'usine du thermostat |
35 °C |
Différentiel |
4 °C |
Volume d'air max. Volume d'air Circuit interne |
510 m³/h |
Volume d'air max. Volume d'air circuit externe |
510 m³/h |
Type de réfrigérant |
R134a |
Quantité de réfrigérant |
600gr |

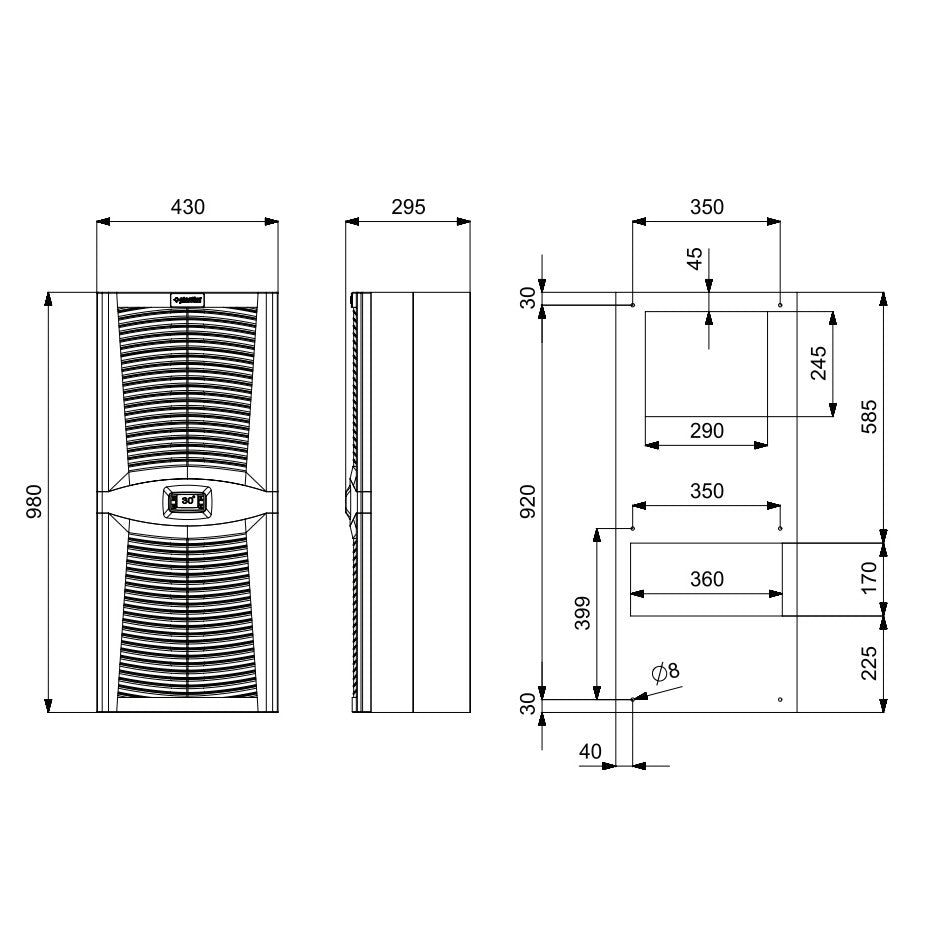

Dimensions de l'appareil |
980x430x270mm |
Poids |
45 kg |
Niveau sonore |
79dB |
Degré de protection (circuit interne) |
IP 54 |
Degré de protection (circuit externe) |
IP 34 |
Couleur |
RAL7035 |
Compresseur |
HIGHLY/HITACHI |
Type de compresseur |
rotatif |
Ventilateurs |
EBMPAPST |
Méthode de montage |
Montage mural |
