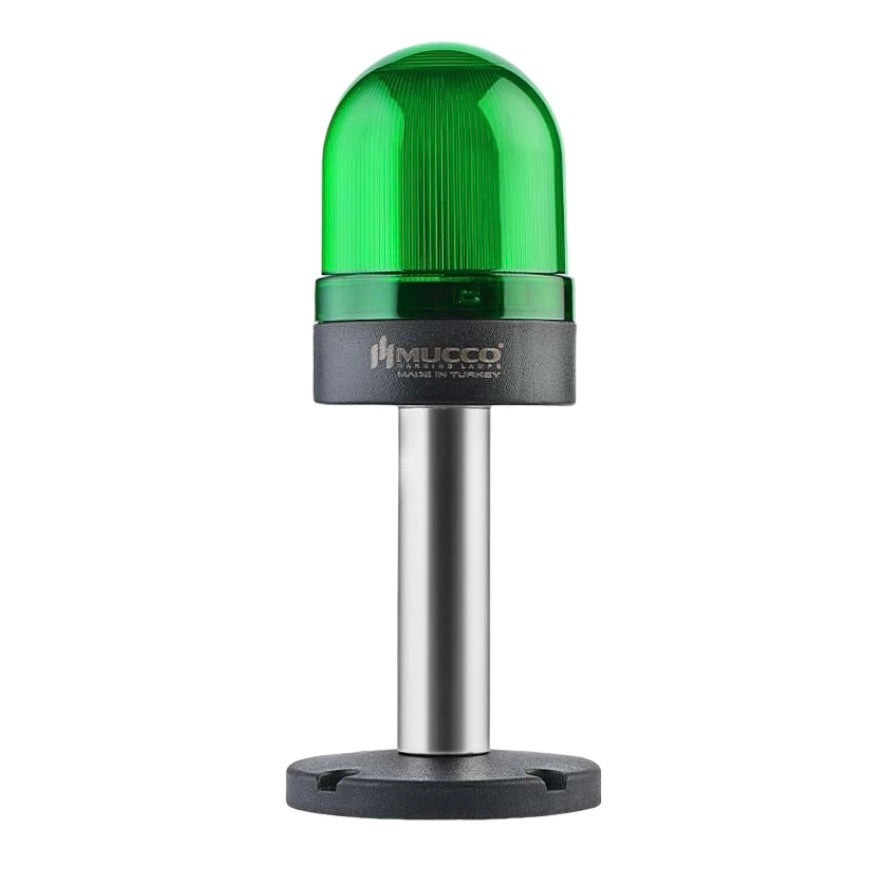

Green light series 70 with connection by nut, 12-24, 40-250V AC/DC, manufacturer MUCCO (Turkey)
70 LENS OPTIONS
LIGHT TYPE Flashing
Buzzer options with buzzer
EXPANSION TUBE 10 cm
TECHNICAL DATA
- Category.
- Current :
24V/DC (without buzzer) : 110mA ±10%.
24V/DC (with buzzer) : 10% 10V/DC (with buzzer) : 150mA ±10% 40~250V AC/DC (without buzzer) : 10/10 mA : 78mA ±10%
40~250V AC/DC (without buzzer) : 10/10 mA : 78mA ±10% 50-60 Hz
40~250V AC/DC (with buzzer) : 60-60 Hz : 95mA ±10% 50-60 Hz
- Body material : ABS (body) + polycarbonate (lens)
- Lens colors : red, green, yellow, blue, white

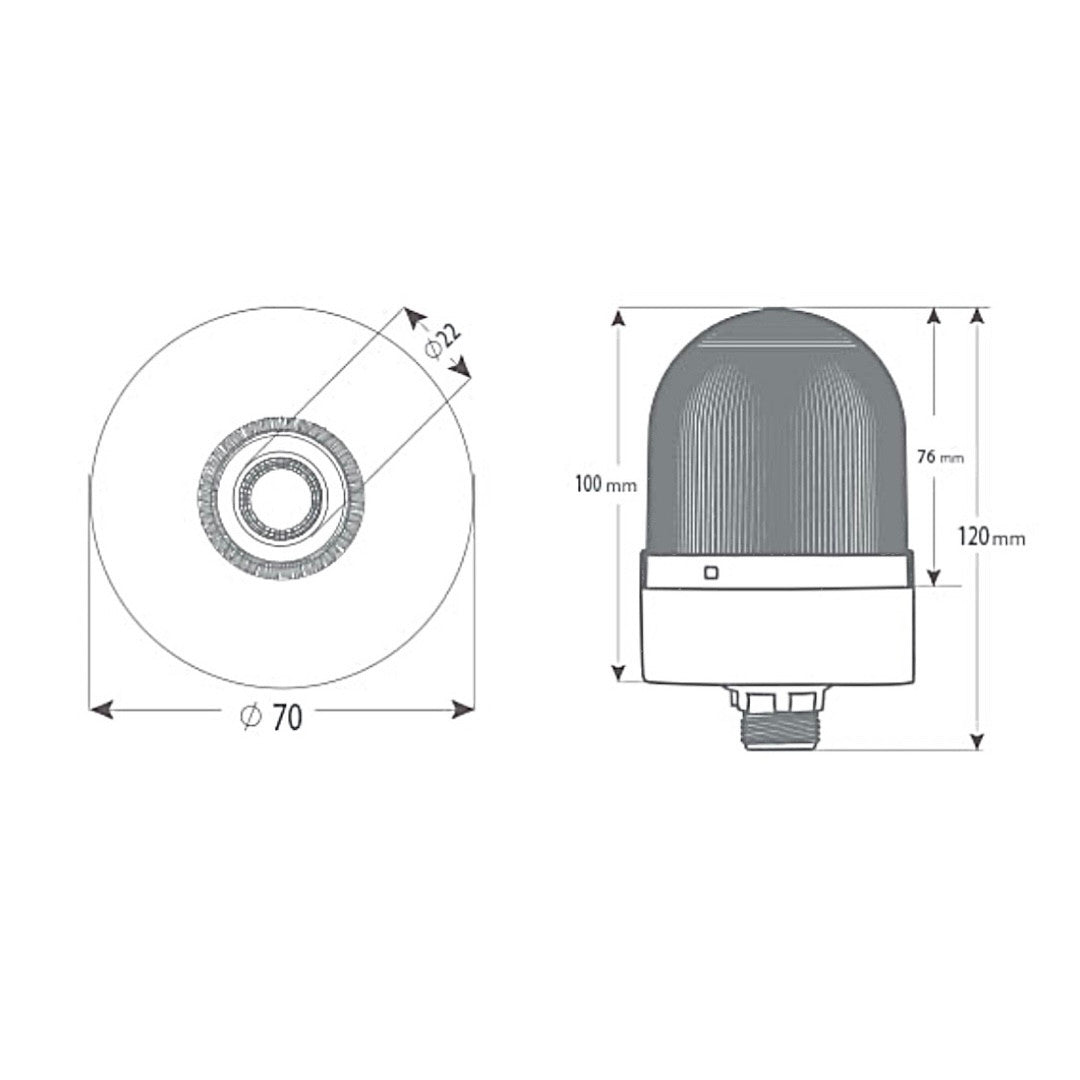

- Lens diameter : ø70 mm (M22 nut - connection)
- Light source : LIGHT SOURCE : SMD LED
- Lighting mode : Fixed, flashing
- Input response time : on/off : max. 10 ms
- Tone : (wired control) : 1 tone
- Alarm : 104~107 dB at 1 m (3.3 ft)
- Connection : wired connection :
- Surface mount, wall mount Mounting type.
- Operating conditions : -20°C to +50°C (-4°F to +122°F)
- Lifetime : Duration : min. 50,000 hours
- Degree of protection : IP65
- Protection : Resistance to water, dust, heat, and UV
- Certificates and quality documents : ISO-9001, CE, RoHS2 and EAC
